aluminium adhesive tape | AWX series Coroplast 1544 AWX

Pure aluminium with acrylic adhesive
contact

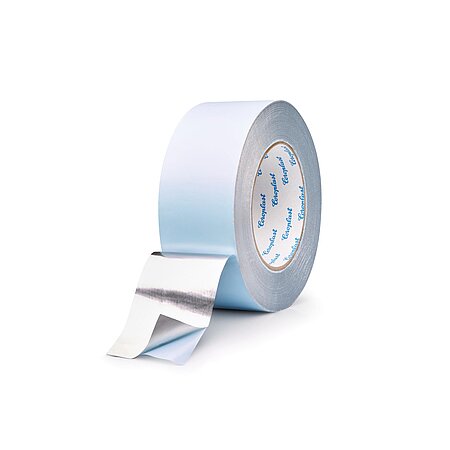

product image: Coroplast 1544 AWX

Characteristics

  • With approval mark, flameretardant in accordance with DIN 4102, building material class B1
  • For impermeable sealing of intersections in aluminiumlaminated insulating mats
  • Suitable for manufacturing die-cut parts
  • Coated with acrylic adhesive that achieves very good adhesion, even on slightly damp surfaces and at extremely low temperatures
  • Easy to apply, even at temperatures as low as –25 °C
  • Strong adhesive suitable for construction sites
  • Outstanding water and vapour barrier
  • Moisture-proof
  • Excellent resistant to ageing
  • High shear strength, even at varying temperatures
  • Very strong adhesion and high initial tack
  • Thickest foil carrier of a Coroplast AWX tape for reliable mechanical properties
  • Tested in accordance with UL 723
1510 AWX 1530 AWX 1542 AWX 1544 AWX 912 AWX 914 AWX
CARRIER pure aluminium pure aluminium pure aluminium pure aluminium Aluminium-clad Aluminium-clad
ADHESIVE Acrylic Acrylic Acrylic Acrylic Acrylic Acrylic
WIDTHS IN mm 50, 70, 75, 100 50, 70, 75, 100 50, 75, 100 50, 75, 100 50, 70, 75, 100 50, 75, 100
THICKNESS IN mm 0.06 0.05 0.08 0.08 0.13 0.2
HEAT RESISTANCE 130 130 130 130 130 130
APPROVAL MARK B1, Steuerrad / Zul.-Nr. 118.424 B1/ A2, Steuerrad / Zul.-Nr. 118.213 B1, Steuerrad / Zul.-Nr. 118.155 in Anlehnung an UL 723
