Wire harness tapes from Coroplast Tape

Regardless of whether flexible, abrasion-resistant, heat-resistant, or noise-damping solutions are necessary. Coroplast Tape provides the widest range of high-quality wire harness tapes worldwide. For more than 40 years, we have been developing technical adhesive tapes for a wide variety of demands and requirements.

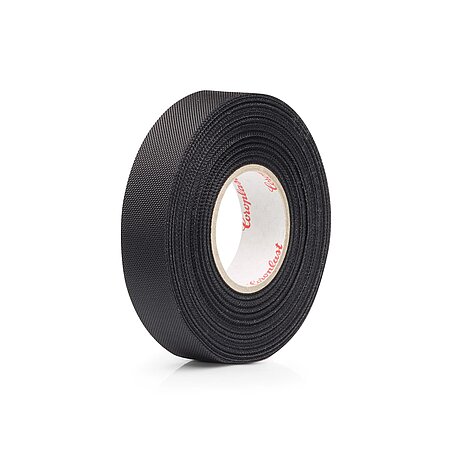

Wire harness tapes | MPX series Coroplast 833 MPX

for heavy-duty mechanical protection

Ansprechpartner kontaktieren

Produkteigenschaften und -vorteile

For manual bundling of wire harnesses
High abrasion resistance
Very good resistance to cold and heat
Compatible with many cable insulation materials (e.g. XPE and PP)
Excellent resistance to motor vehicle operating fluids
Solvent-free acrylic adhesive
Resistant to ageing and rotting
Multilayer PET cloth / non-woven adhesive tape
Excellent sound-dampening properties
High abrasion resistance
See handling instructions for final wrapping
Suitable for impact protection (drop energy class B / B)

	831 MPX	832 MPX	833 MPX	834 MPX
CARRIER	PET laminate	PA cloth	PET laminate	PA/ PET laminate
ADHESIVE	Acrylic	Acrylic	Acrylic	Acrylic
WIDTHS IN mm	19, 25, 38	19, 25, 38	19, 25, 38	19, 25, 38
THICKNESS IN mm	0.32	0.35	1.2	1.2
ABRASION CLASSES	D	E	E	G
SOUND DAMPENING CLASSES	A	A	D	D
HEAT RESISTANCE	125	125	125	125
