Wire harness tapes for e-mobility
Applications and advantages Diverse solutions for safe electromobility
In our wire harness tape selection, you will find solutions for permanent marking of high-voltage cables, reliable protection of wire harnesses or effective heat deration and sound damping. Less complexity, volume and weight: Regardless of the application, we always pursue the goal of minimizing the number of materials required for harness protection, thus significantly reducing the volume and weight of cable harnesses.
With these diverse strengths and application possibilities, wire harness tapes from Coroplast Tape open up numerous advantages over corrugated tubes or protective conduits. And of course, our products are also suitable for automated processing.
We were already working on providing solutions for alternative drives before the big electromobility trend. Our customers can benefit from this head start today.
Lightfast and durable Marking of high voltage cables
For safe electromobility, the clear and reliable marking of high-voltage cables plays an important role.

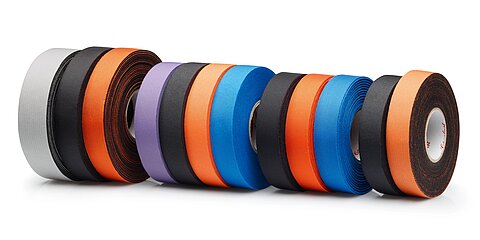

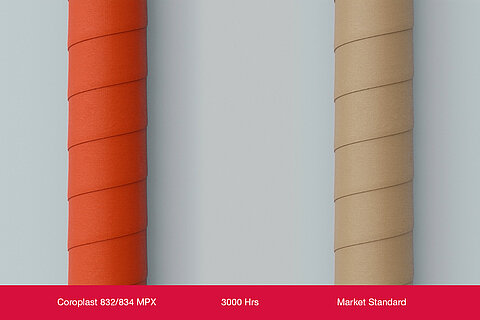

Coroplast Tape offers various orange wire harness tapes for this field of application, all of which are based on the RAL 2003 coding color. They contain colored yarn in the backing material: this is how we ensure lightfast as well as weather- and chemical-resistant coloring that remains colorfast for years and does not fade.
In addition to the orange tapes, we also offer blue and purple versions for marking 48V cables. We can also cover other color codes with several abrasion-resistant wire harness tapes.
Mechanical protection Abrasion resistance and safety in case of impact
With Coroplast Tape wire harness tapes, you can reliably protect your high-voltage cables from abrasion and ensure the best possible impact protection.
Our portfolio offers the largest selection of products in abrasion class D or higher. For maximum safety, the tapes are wound with a 50% overlap. This provides double protection for your HV cable.
Increasing voltages require additional protection: wire harness tapes from the Coroplast Tape MPX-series ensure reliable impact protection and prevent dangerous arcing due to short circuits. To test the protective effect of our wire harness tapes, we have developed a test procedure specifically for this purpose: Our drop tower test clearly shows that our products often provide better protection in a crash than corrugated tubes or protective hoses. Our cable protection solutions reliably prevent short circuits, even with shielded cables.
Noise dampening Reduction of vibrations and rattling
Because electric vehicles are very quiet, vibrations and rattles are much more noticeable. As a result, solutions for noise damping have gained in importance. With us, you will find the largest selection of wire harness tapes on the market. With our non-woven and foam tapes made of various materials, we cover sound classes C to E.
